led mesh
LED mesh screen is a curtain-shaped flat panel display with many LED. It allows the creation of moving designs, texts and images through light effects. They can enhance any outdoor facade to create life through light lights. Due to its many special advantages and video effects that conventional screens cannot provide, mesh screens are increasingly sought after by customers. Our LED Mesh outdoor facade series systems reinvent the large-scale media experience. LED Mesh Curtains have become a popular signage solution for outdoor building facades, ceilings, nightclubs, stage displays for events, concerts and bars. This is because of its lightweight, easy to install features. LED Mesh technology can be customized into many different shapes and sizes and it fits perfectly into architectural lighting and decorations. The sophisticated, scalable, semi-transparent LED system elegantly transforms any surface into a brilliant palette for graphics, text, and video animations in full-colour (RGB).
LED mesh screen is a curtain-shaped flat panel display with many LED. It allows the creation of moving designs, texts and images through light effects. They can enhance any outdoor facade to create life through light lights. Due to its many special advantages and video effects that conventional screens cannot provide, mesh screens are increasingly sought after by customers. Our LED Mesh outdoor facade series systems reinvent the large-scale media experience. LED Mesh Curtains have become a popular signage solution for outdoor building facades, ceilings, nightclubs, stage displays for events, concerts and bars. This is because of its lightweight, easy to install features. LED Mesh technology can be customized into many different shapes and sizes and it fits perfectly into architectural lighting and decorations. The sophisticated, scalable, semi-transparent LED system elegantly transforms any surface into a brilliant palette for graphics, text, and video animations in full-colour (RGB).
Longevity, Energy and Cost Efficiency
LED mesh offers you many qualities such as:
High brightness combined with low energy costs
Long life
Low maintenance
These are the qualities offered by the latest LED technology. The continuous adaptation of the brightness to the ambient conditions also increases the energy efficiency of this system.
Longevity, Energy and Cost Efficiency
LED mesh offers you many qualities such as:
High brightness combined with low energy costs
Long life
Low maintenance
These are the qualities offered by the latest LED technology. The continuous adaptation of the brightness to the ambient conditions also increases the energy efficiency of this system.
typical problemwith XR solution
line
Problem withdisplay performance
Differents colors from different angles
image qualityon led display
cost & reliabilityfor led display
- 1. SOLUTION COST
- 2. SET UP CONVENIENCE
- 3. STABILITY & RELIABILITY
It’s capable of forming different shapes and designs of screen and facade. Thanks to its versatility you can have some section of high definition e.g. Pitch 6mm and other section of low resolution e.g. Pitch 50mm all within the same wall. This product helps architect and designers to design fantastic looking façade buildings. A Mesh is a barrier made of connected strands, fiber, or other flexible/ductile materials. A Mesh is similar to a web or a net, in that it has many attached or woven strands. The Mesh concept is the same as knitting, which allows any shape, a high shock absorption, weather resistance, transparency and natural ventilation by its holes and spacing. Here we’ll be talking about two kinds of LED Mesh; Classical LED mesh and Metallic LED Mesh curtains.
Classical LED Mesh are a display on their own; LED strips are mounted onto plastic strips that are assembled using the same techniques as knitting, which allows an important flexibility and the creation of any shape. Metallic Mesh curtains are also made with the same technique, except with different material and a thinner composition. It is made from metal fibers made of stainless steel that are woven together with the knitting process. Then, LED strips can be mounted on it from the back of the module, which allow an homogeneous structure without visible wires. Suitable for both indoor and outdoor displays, the LED Mesh curtain is made out of stainless steel which makes it light, resistant, and cheap. Both classical and curtain Mesh modules are custom built depending on the customer’s needs, then the LED strips are fixed onto it, which only allows the LED light to go through the panel and makes the LED strips invisible.
It’s capable of forming different shapes and designs of screen and facade. Thanks to its versatility you can have some section of high definition e.g. Pitch 6mm and other section of low resolution e.g. Pitch 50mm all within the same wall. This product helps architect and designers to design fantastic looking façade buildings. A Mesh is a barrier made of connected strands, fiber, or other flexible/ductile materials. A Mesh is similar to a web or a net, in that it has many attached or woven strands. The Mesh concept is the same as knitting, which allows any shape, a high shock absorption, weather resistance, transparency and natural ventilation by its holes and spacing. Here we’ll be talking about two kinds of LED Mesh; Classical LED mesh and Metallic LED Mesh curtains.
Classical LED Mesh are a display on their own; LED strips are mounted onto plastic strips that are assembled using the same techniques as knitting, which allows an important flexibility and the creation of any shape. Metallic Mesh curtains are also made with the same technique, except with different material and a thinner composition. It is made from metal fibers made of stainless steel that are woven together with the knitting process. Then, LED strips can be mounted on it from the back of the module, which allow an homogeneous structure without visible wires. Suitable for both indoor and outdoor displays, the LED Mesh curtain is made out of stainless steel which makes it light, resistant, and cheap. Both classical and curtain Mesh modules are custom built depending on the customer’s needs, then the LED strips are fixed onto it, which only allows the LED light to go through the panel and makes the LED strips invisible.
Our IP67 protected system is ideal for both indoor and outdoor applications. Thanks to the use of high quality materials, LED Mesh and LED Mesh curtains are a system that offers strong weather and temperature resistance. Even in extreme temperatures of -30°C to 60°C, they guarantee trouble-free operation. For LED Mesh curtains, the proven functionality of the stainless steel mesh for sun protection and the transparency of the mesh façade enrich the application. The architectural mesh is lightweight, durable and transparent, which offers a multitude of benefits for your building. Through the holes in the pattern, architectural mesh acts as a natural ventilation system. In addition, the openness of the mesh pattern, whether it is LED mesh or LED mesh curtain, allows natural light and air to flow in abundance, thus improving the air quality in the space. Classic LED Mesh is totally flexible and can be adapted to any shape and space. They are made for large areas and long viewing distances and can be produced as wide as needed. They are also easy to maintain, as the clipping system of the knitted structure offers the possibility to undo it in seconds.
After COT treatment, the occurrence of yellowing, blistering and delamination caused by extreme temperature will be effectively reduced .
After COT treatment, the occurrence of thickness difference, unevenness and color difference will be effectively reduced.
flexible design
LED Mesh allows any size and shape to be created to meet the specific requirements of a project. Due to the flexible mounting system, even the largest surfaces can be easily covered in any corner. LED Mesh is ideal for building facades, walls, exhibition centers, columns, tunnels, ceilings, and so on. It is an indisputable choice.
Our IP67 protected system is ideal for both indoor and outdoor applications. Thanks to the use of high quality materials, LED Mesh and LED Mesh curtains are a system that offers strong weather and temperature resistance. Even in extreme temperatures of -30°C to 60°C, they guarantee trouble-free operation. For LED Mesh curtains, the proven functionality of the stainless steel mesh for sun protection and the transparency of the mesh façade enrich the application. The architectural mesh is lightweight, durable and transparent, which offers a multitude of benefits for your building. Through the holes in the pattern, architectural mesh acts as a natural ventilation system. In addition, the openness of the mesh pattern, whether it is LED mesh or LED mesh curtain, allows natural light and air to flow in abundance, thus improving the air quality in the space. Classic LED Mesh is totally flexible and can be adapted to any shape and space. They are made for large areas and long viewing distances and can be produced as wide as needed. They are also easy to maintain, as the clipping system of the knitted structure offers the possibility to undo it in seconds.

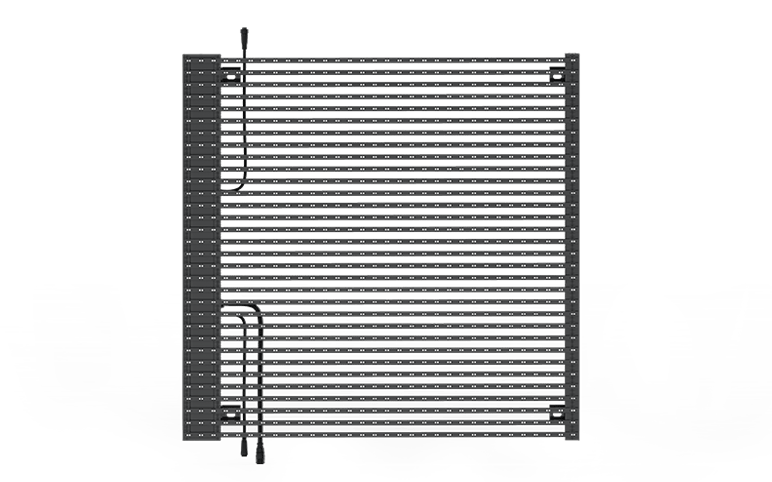

Structural mesh curtain LED displays are mainly used for large outdoor areas where high resolution is not necessarily required. The concept here is that of a traditional LED screen where each panel of the LED mesh is combined to form the required size. This option obviously benefits from the advantages of LED mesh product itself: light weight, transparency, low cost, easy installation, etc. This option ranges from 6mm pixel pitch outdoors to 50mm pixel pitch, with brightness ranging from 2000nits to 15000nits.
Structural mesh curtain LED displays are mainly used for large outdoor areas where high resolution is not necessarily required. The concept here is that of a traditional LED screen where each panel of the LED mesh is combined to form the required size. This option obviously benefits from the advantages of LED mesh product itself: light weight, transparency, low cost, easy installation, etc. This option ranges from 6mm pixel pitch outdoors to 50mm pixel pitch, with brightness ranging from 2000nits to 15000nits.
Structural mesh curtain LED displays are mainly used for large outdoor areas where high resolution is not necessarily required. The concept here is that of a traditional LED screen where each panel of the LED mesh is combined to form the required size. This option obviously benefits from the advantages of LED mesh product itself: light weight, transparency, low cost, easy installation, etc. This option ranges from 6mm pixel pitch outdoors to 50mm pixel pitch, with brightness ranging from 2000nits to 15000nits.
There are mainly 3 types of LED mesh in the LED display market. Street Co’ can help you find the best solution for your LED mesh projects from each of the following options
This variant of LED mesh is lightweight and flexible, so you can fold and wrap it around curved and S-shaped surfaces. The net mesh curtain LED series is an amazing light and flexible LED curtain that can be used both indoor and outdoor for fixed or rental applications. The Net mesh curtain LED can be rolled up and bent in different directions or hung. We can provide the screen in many different sizes to answer your request.
- 1.NO SHOOTING LINES
- 2. NO BANDING OR NOISE
- 3. PRECISE COLOR DISPLAY CLOSE TO REAL
- 4.SAME COLORS EFFECT FROM ALL ANGLES
Adequate visual refresh rate on display --no shooting lines on camera
Display design led screen
- Low scan, best display effect
- Less than 8 scans recommended
Control system
- Adequate refresh rate in low grayscale ensured in collaboration with ic
- Genlock available to keep video source, display, cameras
synchronised
This variant of LED mesh is lightweight and flexible, so you can fold and wrap it around curved and S-shaped surfaces. The net mesh curtain LED series is an amazing light and flexible LED curtain that can be used both indoor and outdoor for fixed or rental applications. The Net mesh curtain LED can be rolled up and bent in different directions or hung. We can provide the screen in many different sizes to answer your request.
shooting lines
Reduce the number of scans while designing the display. It is recommended that the number of scans not exceed 16 scans for shooting applications.
Prioritize the reduction of current to reduce brightness, and preset multiple brightness adjustment modes that prioritize the use of current.
Driver IC mode adjustment.
Random scanning.
Rolling black lines
Frame tracking technology to reduce black field waiting time.
Genlock function of the controller to synchronize the LED display with the camera, and fine-tune the phase of Genlock
FRAME MULTIPLICATION to led screen
From the relationship between camera exposure time and LED display frame rate, we can determine the proper combination of shutter angle and frame rate for the most optimal shooting result.
We can support frame multiplication, allowing for expansion of frame rate.
No bangding,precise color
Adequate grayscale on display — colors more precisely controlledDisplay designCustomized color gamut covered by the RGB lamp beadsDisplays uncoupled designed(screen design and IC selection)White to black couplingBlack to white couplingCross-board coupling
Control system:Increase in display grayscale ensured in collaboration with ICCapability of calibrating the screen2.1 The brightness calibration of the screen from 0 to 255 conforms to the EOTF curve;2.2 Calibrate the color accuracy of the screen to ensure δe<4
1. Accurately capture the original color gamut ofthe display.
2. Automatic adjustment according to the colorgamut requirements of the input source.
1. 22bit+ achieves the highest 6bit grayscalepromotion and the smallest 0.002nits precisecontrol and compensation.
2.Precise Grayscale, use a colormeter to collectthe original grayscale performance of eachcolor, and make corrections andcompensations.
Effet comparaison (before left) and after (right)
Same effect fromdifferent angles
Requirements of xR for LED Display
Small enough RGB chip spacing required
Display design
1.Choose smaller size LED chips
2.The mesh cover of LED is speciallyControl system:Quick adjustment of RGB ratio in case of aproblem to ensure normal color display of some cameras
REAL CASE for xr
the solution for xR
Suitable for shooting and application
of small scenes
1G bandwidth solution at 8K resolutionSuitable for shooting and applications in
large-scale scenes such as studios
Higher requirements of xR for LED screens
8K HDR
HFR 120Hz/144Hz/240Hz
10bit/12
bitPrecise Color
Ultra low latency
What can you create with LED mesh?
- Building facades
- Tunnel

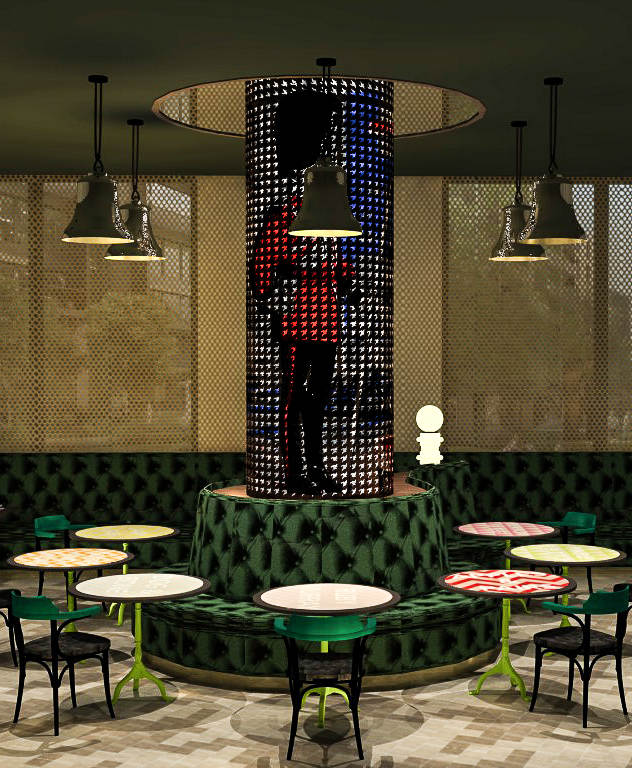

- Columns
- Tree LED

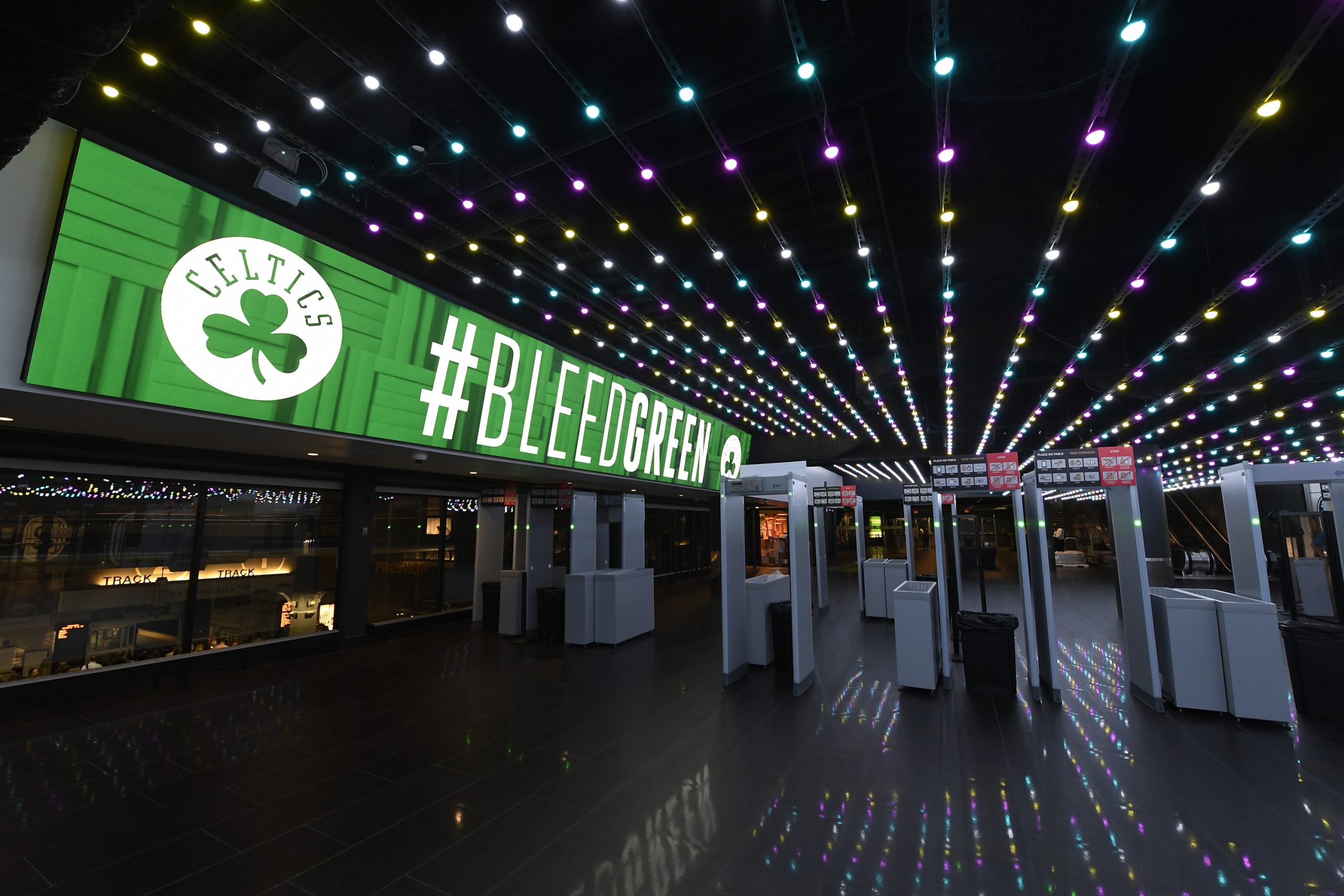

- Ceiling LED
- Dome LED
- Lighting LED
- Bridge LED
1. Programming and Intuitive Operation Worldwide
The programming of classical LED Mesh and LED Mesh Curtain can be done using a smartphone, tablet PC or other remote device. The media facade can easily be live controlled from anywhere.
2. Easy installation and Retrofitting
LED Mesh outdoor facade has a simple assembly concept. Though our specially designed clip-technology systems, the LED-profiles and the universal connector system are very easy to install. And, if necessary, they can quickly and smoothly be replaced on location by our team or any Mesh trained person.
3. Brillant Quality
Both the full video-based media facade systems feature an infinite number of colors, a high brightness, resolution and refresh rate for an incredible and creative result on the facade. For both Classical LED Mesh and LED metallic Mesh curtains.
4. Night and Daytime Use
To ensure a 24-hour operation anywhere in the world our Classical LED Mesh and metallic LED Mesh curtain façade are available with a maximum brightness > 11000 nit (cd / m²). At dusk or at night the system can continuously be dimmed, automatically or manually.
5. Homogeneous Appearance
Even though LED Mesh curtains are composed of stainless steel on which are attached LED strips, that make it a massive structure, they have the advantage of having a homogeneous appearance. The LED strips are attached to the reverse side of the wire mesh maintaining the homogenous look of the façade at all times. The Metallic LED Mesh panel is regular. The inconspicuous cabling of each profile is not visible from the outside and with the high transparency of the mesh, the translucent look of the facade is maintained from both inside and outside.The shape and size of the media screen does not have to be the same size as the mesh facade. Since the LED strips are attached to the reverse side of the Mesh wire, they are hidden by it, therefore it becomes invisible. LED Mesh curtain wire are a design piece on their own. Therefore, even when the LED are off, the Mesh becomes an object of decoration and not a simple screen.
6. Individual Service
At every phase of your project our engineering team will give you comprehensive support. We will guide you safely every step of the way from concept to implementation. Street Co’ analyses the project and spot data, designs the module, creates video content, install the module and offers a two year guarantee on any product.
1. Easy Front Maintenance
Through an intuitive and easy-to-use maintenance system the LED Video Wall can be serviced from the front of the display. The LED modules can be removed quickly and efficiently for convenient maintenance.
2. Super fine HD pixel pitch
All available screen sizes have full high definition resolution and a standard 16:9 aspect ratio. This fine pixel pitch, combined with the advantage of no unsightly edges, makes these displays the best in high-end presentation video walls.
3. Adjustable Backlight
The Fine Pitch LED Presentation Video Wall is bright enough for all ambient lighting conditions, but the screen can be adjusted manually to suit user preferences. If your conference or meeting room is quite dark then you can reduce the backlight brightness to improve overall readability.
4. Optional floor stand
If you don’t have the desired wall space, an optional floor stand can be included to mount the LED video wall if the product allows it.
1. Easy install and maintenance
Flexible LED displays have a simple installation concept, which is to clip the modules together. Though our specially designed clip technology, LED profiles and universal connector system are very easy to install. And if necessary, they can be quickly and easily replaced on site by our staff or any other trained person.
2. Brillant Quality
Flexible LED displays offers an infinite number of colors, brightness ranging from 800 to 1000nits, excellent resolution and high refresh rate for an incredible and creative result on different application media.
3. Individual Service
At every phase of your project our engineering team will give you comprehensive support. We will guide you safely every step of the way from concept to implementation. Street co’ analyses the project and spot data, designs the module, creates video content, install the module and offers a two year guarantee on any product.
4. Customizable
Flexible LED screen is a product that allows you to express your imagination. Indeed, you can give your screen any shape and size you want : cylindrical, square, circular, curved, etc. These screens will help you beautify your structures and attract your customers.
1. Modular design
Based on the most proper pixel pitch, standard modules can be assembled into display in diverse sizes.
2. Easy installation and maintenance
Easily fix the module in the structure very fast; customized installation is also available.
3. Beautiful appearance design
Transparent LED modular design and simple structure make it more clear and transparent
4. Performances stables
D’innombrables et stricts tests avant que les produits ne quittent l’usine et jouissent d’une bonne réputation auprès des clients.
5. Planéité complète
La structure précise en aluminium assure la parfaite planéité du module.
6. Rentabilité
L’assemblage et l’installation faciles permettent d’économiser beaucoup de coûts de main-d’œuvre.
1. Programming and Intuitive Operation Worldwide
The programming of classical LED Mesh and LED Mesh Curtain can be done using a smartphone, tablet PC or other remote device. The media facade can easily be live controlled from anywhere.
2. Easy installation and Retrofitting
LED Mesh outdoor facade has a simple assembly concept. Though our specially designed clip-technology systems, the LED-profiles and the universal connector system are very easy to install. And, if necessary, they can quickly and smoothly be replaced on location by our team or any Mesh trained person.
3. Brillant Quality
Both the full video-based media facade systems feature an infinite number of colors, a high brightness, resolution and refresh rate for an incredible and creative result on the facade. For both Classical LED Mesh and LED metallic Mesh curtains.
4. Night and Daytime Use
To ensure a 24-hour operation anywhere in the world our Classical LED Mesh and metallic LED Mesh curtain façade are available with a maximum brightness > 11000 nit (cd / m²). At dusk or at night the system can continuously be dimmed, automatically or manually.
5. Homogeneous Appearance
Even though LED Mesh curtains are composed of stainless steel on which are attached LED strips, that make it a massive structure, they have the advantage of having a homogeneous appearance. The LED strips are attached to the reverse side of the wire mesh maintaining the homogenous look of the façade at all times. The Metallic LED Mesh panel is regular. The inconspicuous cabling of each profile is not visible from the outside and with the high transparency of the mesh, the translucent look of the facade is maintained from both inside and outside.
The shape and size of the media screen does not have to be the same size as the mesh facade. Since the LED strips are attached to the reverse side of the Mesh wire, they are hidden by it, therefore it becomes invisible. LED Mesh curtain wire are a design piece on their own. Therefore, even when the LED are off, the Mesh becomes an object of decoration and not a simple screen.
6. Individual Service
At every phase of your project our engineering team will give you comprehensive support. We will guide you safely every step of the way from concept to implementation. Street Co’ analyses the project and spot data, designs the module, creates video content, install the module and offers a two year guarantee on any product.
